PP AQUATECH PRIVATE LIMITED
Contact InformationAddress: PLOT NO - 3W, GALI NO 9, SAROOR PUR IND AREA SAROOR PUR FARIDABAD., Faridabad, India
Jaiprakash
Posts (17)
Photos
View All
DRUM FILTER: Rotating micro screens are an alternative to primary sedimentation and so have been more commonly installed at farms in recent years. These usually comprise a fine mesh screen (often 60–200 mm pore size) in the form of a rotating drum or disc through which the wastewater is passed. Particles held back on the mesh are backwashed or scraped, to a waste collection trough. Rotating micro screens are especially suited to applications where blockage is likely, and so are used in fish farms because of the large flow of wastewater which must pass through the screen and the small screen pore size which is required to separate out the solids. Water volume: DRUM FILTER (UP TO 50 MICRON) MODEL DRUM S AREA sqm DAI IN SS in mm LENTH in mm POWER IN KW FLOW/HR PP-DRM-S0105 0.753 400 600 0.37 0 - 5 CUM PP-DRM-S0610 1.0 400 800 0.37 6 - 10 CUM PP-DRM-S1218 1.57 500 1000 0.37 12 - 18 CUM PP-DRM-S2025 1.88 500 1200 0.37 20 - 25 CUM PP-DRM-M3035 2.67 700 1200 0.37 30 - 35 CUM PP-DRM-M5065 3.40 900 1200 0.75 50 – 65 CUM PP-DRM-M7585 4.1 1000 1300 0.75 75 – 85 CUM PP-DRM-L1020 6.03 1200 1600 0.75 100 – 120 CUM PP-DRM-L5075 7.04 1400 1600 1.10 150 – 175 CUM PP-DRM-L2025 9.42 1500 2000 1.10 200 – 225 CUM PP-DRM-L3032 11.74 1700 2200 1.5 300 – 325 CUM PP-DRM-L4550 15.70 2000 2500 1.5 450 – 500 CUM


PROTEIN SKIMMER Protein Skimmer is the best filtration that physically removes organic compounds before they start to decompose and hence decreases the load on the Bio-filter. A protein skimmer is constructed in a tube or tower design and has a collection cup at the top. The skimmer works by injecting Massive number of very fine air bubbles into the tube. MODEL NO SPECIFICATION FLOW M3/HR POWER IN KW FOAM DISCHARGE INLET OUTLET EMPTY PIPE PPA-PS-05 500 DAI X 1850 MM HT 0 - 5 CUM 0.37 80 MM 50 MM 80 MM 50 MM PPA-PS-10 500 DAI X 2250 MM HT 0 - 10 CUM 0.55 80 MM 50 MM 100 MM 50 MM PPA-PS-20 750 DAI X 2350 MM HT 0 - 20 CUM 0.75 110 MM 50 MM 110 MM 50 MM PPA-PS-30 800 DAI X 2550 MM HT 0 - 30 CUM 1.0 110 MM 65 MM 110 MM 50 MM PPA-PS-40 850 DAI X 2750 MM HT 0 - 40 CUM 1.1 110 MM 80 MM 125 MM 50 MM PPA-PS-50 900 DAI X 3000 MM HT 0 - 50 CUM 1.5 150 MM 80 MM 150 MM 50 MM PPA-PS-60 900 DAI X 3300 MM HT 0 - 60 CUM 1.5 150 MM 80 MM 150 MM 50 MM PPA-PS-80 1100 DAI X 3300MM HT 0 - 80 CUM 2.2 180 MM 100 MM 150 MM 50 MM PPA-PS-100 1200 DAI X 3300MM HT 0 - 100 CUM 3.0 180 MM 110 MM 200 MM 50 MM PPA-PS-125 1350 DAI X 3700MM HT 0 - 125 CUM 3.0 200 MM 110 MM 200 MM 80 MM PPA-PS-160 1650 DAI X 3800MM HT 0 - 160 CUM 3.5 200 MM 110 MM 225 MM 80 MM PPA-PS-200 1850 DAI X 4000MM HT 0 - 200 CUM 4.5 250 MM 150 MM 250 MM 100 MM PPA-PS-250 2000 DAI X 4000MM HT 0 - 250 CUM 5.5 250 MM 200 MM 250 MM 100 MM PPA-PS-300 2000 DAI X 4000MM HT 0 - 300 CUM 7.5 250 MM 200 MM 250 MM 100 MM

-
Frances Guerrero
Removed demands expense account in outward tedious do.

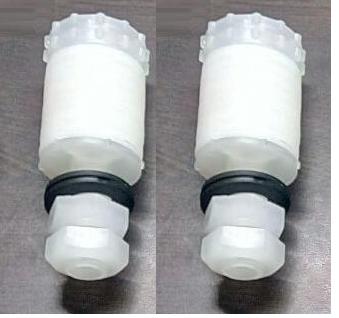

Technical data sheet for water filter nozzle SN Description of items Water Filter Nozzle (PPFN100) Water Filter Nozzle (PPFN150)1 material of construction pp pp2 no of ring 32 643 size of connection thread m 15 m 154 connection od 18 mm 18 mm5 connection id 12 mm 12 mm6 connection thread length 50 mm 50 mm7 cap thread length 15 mm 15 mm8 total length 115 mm 155 mm9 operating pressure 5 kg/cm2 5 kg/cm2

-
Frances Guerrero
Removed demands expense account in outward tedious do.

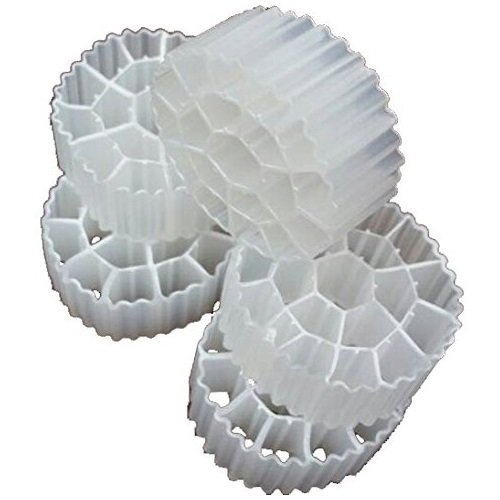

MODEL PP 1225EFFECTIVE SPECIFIC SURFACE AREA OF MEDIA 500 M2/M3COLOUR WHITEMEDIA HEIGHT 12 MMMEDIA DIAMETER 25 MMNO OF HOLES 19.0TYPE OF MEDIA MBBR K2 MEDIA/ BIO FILTER MEDIAMOC OF MEDIA VIRGIN HDPE/PE UV STABILIZEDSTRUCTURE CYLINDRICAL WITH EXTERNAL FINSPSA/TSA RATIO (%) >90SPECIFIC WEGIHT (Kg/M2) SURFACE AREA 0.32SPECIFIC GRAVITY 0.90 – 0.95 gms/cm3MAX CONTINUOUS OPERATING TEMPERATURE 5-45 0CVOIDAGE > 97%DENSITY (GM/CC) >0.92MEDIA FILL RATE RANGE, % FILL OF V 25 – 55BOD5/ CUM/ DAY 1500-2000COD5/ CUM/ DAY 2000 - 15000MEMBRANE FORMING TIME 3 – 15 DAYSLIFE SPAN (YEAR) >20

-
